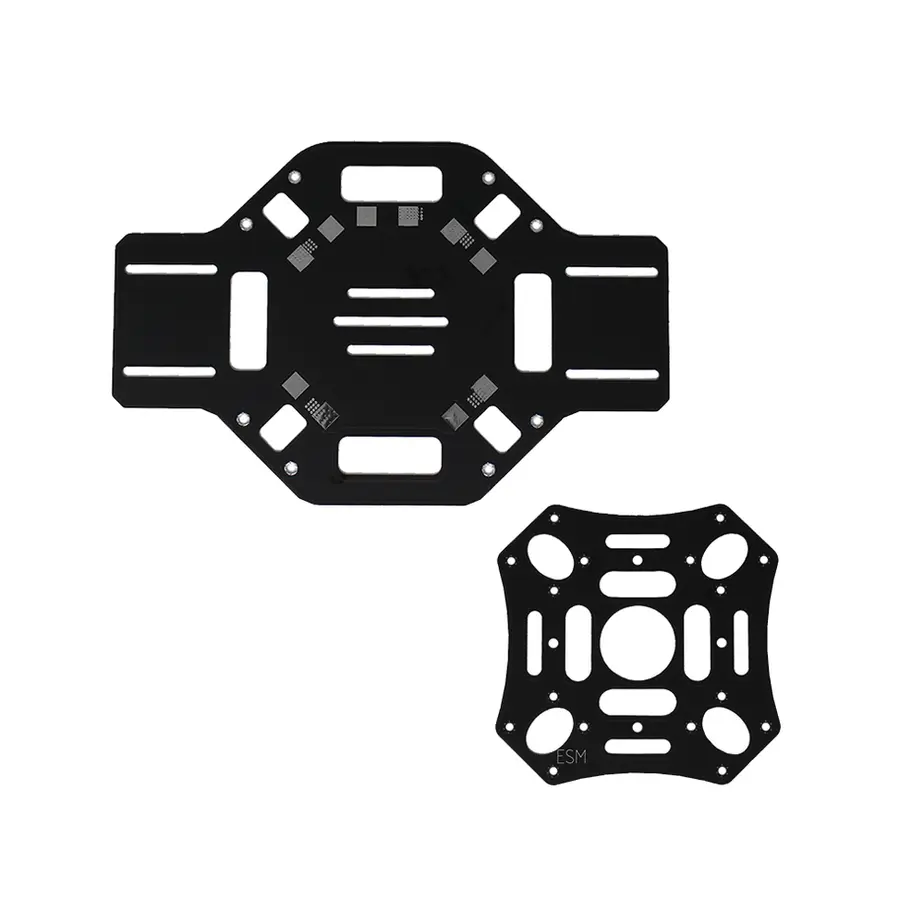

F450 / Q450 Quadcopter Frame with Integrated PCB

This F450 / Q450 Quadcopter Frame is made from 35% of Glass Fiber which makes it tough and durable. They have arms of ultra-durable Polyamide-Nylon which are the stronger molded arms having a very good thickness so no more arm breakage at the motor mounts on a hard landing. The arms have support ridges on them, which improves stability and provides faster forward flight.

They are strong, light, and have a sensible configuration including a PCB(Printed Circuit Board) with which you can directly solder your ESC‘s to the Quadcopter. So, making the Quadcopter build fast and easy. So, it avoids the use of extra PDB and makes the mounting clean and neat.

Introducing our Made in India Drone Frame, meticulously crafted to ensure assured quality and exceptional compatibility surpassing other options in the market.

Note:

• The dimensions and weight may have ±5% error.
• Landing gears are not included in the kit.
• Refer to the attachments for schematics for Dimensional Details.

Note : Motor mounting screw not included .

Features:

• Made of advanced engineering material, super strong & smooth
• Easy to assemble and disassemble.
• The frame is tough and durable.
• The main glass fiber frame has good strength.
• The arm equips support ridges for better and faster forward flight.
• Features pre-threaded brass sleeves.
• Large mounting tabs for camera mounting.
• In-built power distribution board.
• Arm mounting holes: 3 mm.

Package Includes:

1 x F450/Q450 Quadcopter Frame (Top and Bottom) with Integrated PCB.
4 x F450/Q450 arms (2 Red + 2 White).
1 x Accessories set. (24 X M2.5 X 5mm).

Recommendation (NOT Included ) :

• Propeller: “1045″ OR “8045” Orange Propeller (CW & CCW)
• Battery: 3S Orange LiPo (1800 – 3600mAh)
• ESC: 15A – 40A.
• Motor: 800-1100 KV (brushless dc motor)

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of our customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.

What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
