NEO 7M GPS With Compass for APM 2.6/2.8 and Pixhawk 2.4.6/2.4.8
₹2,099.00
Taxes Included
- Tracking sensitivity: 161 dBm
- Capture sensitivity : 148 dBm
- Cold start time: 38s average
- Warm start time: 35s average
- hot start time: 1s average
- Capture time: 0.1s Average
Quantity
Description
If you are wandering to navigate the distance with a drone then this GPS Module is needed for you. GPS drones are equipped with a GPS module that allows them to know their location relative to a network of orbiting satellites. Connecting to signals from these satellites allows the drone to perform functions such as position hold, autonomous flight, return to home, and waypoint navigation.
Neo 7M GPS module that includes an HMC5883L digital compass. The new NEO 7 series is a high sensitivity, low-power GPS module that has 56 channels and outputs precise position updates at 10Hz. This GPS module also comes with a molded plastic case which keeps the module protected against the elements making it ideal for use on your aircraft or quadcopter.

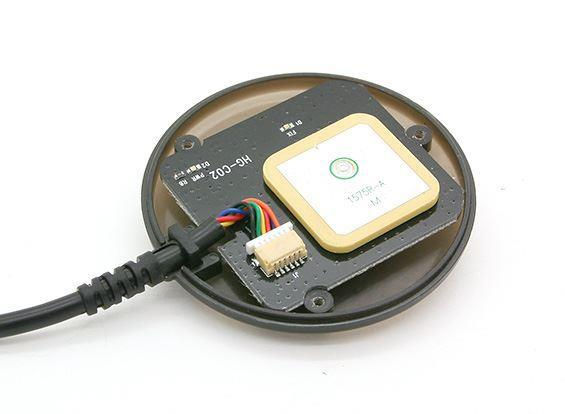

This Neo 7M GPS module uses an active circuitry ceramic patch antenna to provide an excellent GPS signal which outperforms the older Neo 6 series modules. This Neo 7 module also includes a rechargeable backup battery to allow for HOT starts and also includes an I²C EEPROM to store the configuration settings. Out of the box this GPS module is configured to run at 38400 Baud and is configured to run with APM/Pixhawk systems. This GPS module includes two cables, a 6pin connector for the GPS module, and a 4 pin connector for the i2c compass.
Note:
- APM 2.5 and APM 2.0 have an internal compass (unlike APM 2.6) which must be disabled by cutting a trace before you can connect the 3DR GPS + Compass module (the video here shows how).
- Other than disabling the internal compass, connecting them is the same for APM2.0/APM2.5 as for APM2.6.
Features :
- Locate performance
- These are Pre-configured, Flashed with the correct settings, and tested. To make them Plug and Play.
- Super Bright LED
- Backplane with Standard Mk style mounting holes 45mm X 45mm
- 38400 bps (Default) Changed to 115200bps!
- Output GGA, GSA, and RMC frames
- 1Hz (Default) Changed to 5Hz!
- Permanent Configuration Retention
- compass on board
- 6 pin connector for EZ connect to MEGA BLACK
- 4 pin connector for only GPS use
- 4 pin connector for compass only use
- Can use both 4 pins at once.
Package Includes :
1 x Neo 7M GPS module.
Specification
| Model |
Ublox NEO 7M |
|---|---|
| Receiver Type |
56 Channels, Galileo E1B/C1, GPS L1C/A, QZSS L1C/A, SBAS L1C/A |
| Receiver Frequency |
L1 [1575.42MHz] |
| Input Supply Voltage (VDC) |
3.5 ~ 5.5 |
| Main Chip |
U-BLOX NEO-7M |
| Sensitivity (dBm) |
-155, -160, Cold Start (without aiding): -147 dBm, Tracking & Navigation: -161 dBm |
| Position Accuracy (Meter) |
2, 2.5 |
| Acceleration (g) |
<4 |
| Navigation Update Rate |
5Hz |
| Operating Temperature (°C) |
-24 to 84 |
| Tracking Sensitivity (dBm) |
-161 dBm |
| Co-Ordinate System |
WGS-84 |
| Capture Time |
0.1s Average |
| Avg Cold Start Time (s) |
38 |
| Warm Start Time (s) |
35 |
| Boot Time |
1S |
| Maximum Altitude (m) |
18000 |
| Maximum Speed |
515 m/s |
| Dimensions (LxWxH) mm |
60 x 11.5 (DxH) |
| Weight (g): |
26 |
| Cable Length (cm) |
20 |
| Shipping Weight | 0.08 kg |
| Shipping Dimensions | 8 × 8 × 5 cm |
Warranty
15 Days Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of our customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What voids warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
